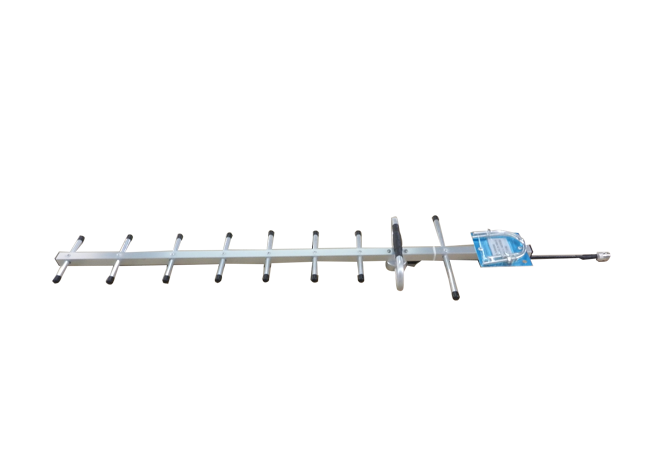

*Model No.: MNTOYAGSM01 *Supporting GSM850&900MHz together *With high gain of 12dBi *Working with all weather condition *With strong radiating elements
|
Electrical Specification |
|
|
Model No. |
MNTOYAGSM01 |
|
Frequency Range |
806-960MHz |
|
Gain |
12dBi |
|
Horizontal Beamwidth |
45±5º |
|
Vertical Beamwidth |
40±3º |
|
F/B Ratio |
≥22dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
100W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
600x275x75mm |
|
Weight |
3.2Kg |
|
Rated Wind Velocity |
69m/s |
|
Operational humidity |
< 95％ |
|
Reflector material |
Aluminum |
|
Suitable pole diameter |
￠40～￠80mm |
|
Operating temperature |
- 40～55℃ |
