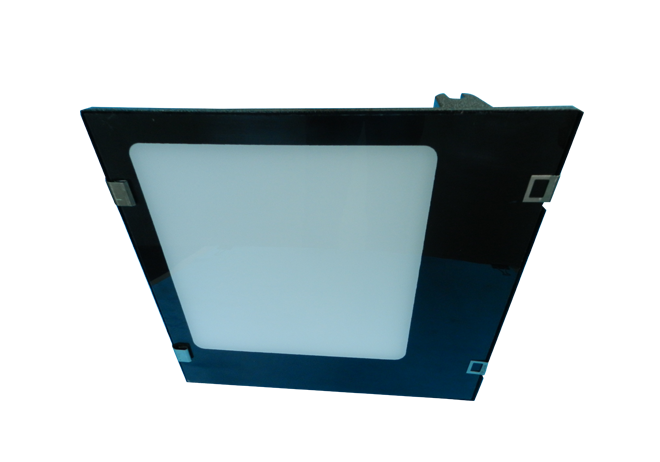

LED Decorative antenna Suporting wide band frequency range 880~2700MHz Used in the senior residential area
|
Electrical Specification |
|
|
Model |
MNTDA8271401 |
|
Frequency range |
880~960/1710~2700MHz |
|
Gain |
12/14dBi |
|
Horizontal Beamwidth |
20~40º |
|
Vertical Beamwidth |
25~45º |
|
F/B Ratio |
≥25dB |
|
VSWR |
≤1.5 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
100W |
|
Connector |
N-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
550x550x230mm |
|
Weight |
6.8kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
Black |
|
Operating temperature |
-40～55º |
