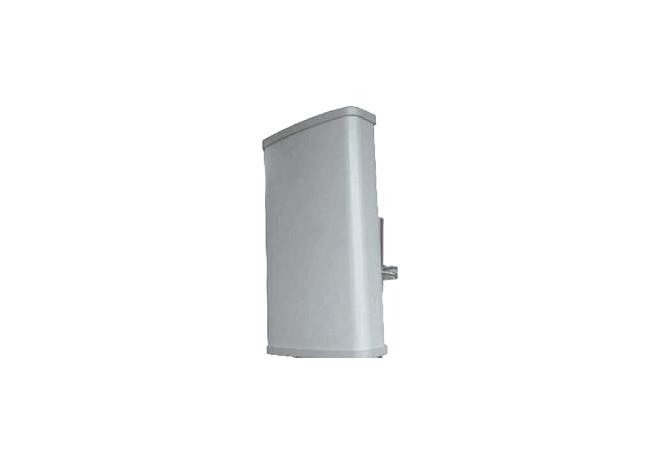

Supporting 388~470MHz with low vswr Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTBOPA38847G5 |
|
Frequency Range |
388~470MHz |
|
Gain |
5dBi |
|
Horizontal Beamwidth |
90±15º |
|
Vertical Beamwidth |
65±3º |
|
F/B Ratio |
≥15dB |
|
VSWR |
≤2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
100W |
|
Connector |
N-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
450x280x130mm |
|
Weight |
3.55kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
Grey |
|
Radome material |
PVC |
|
Operating temperature |
-40～55℃ |
|
Suitable pole diameter |
￠40～￠80mm |
