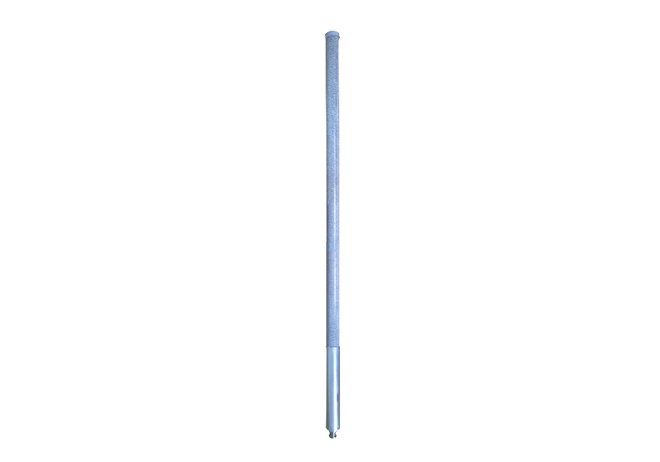

Supporting 380~400MHz With high gain of 6.5dBi Working with all weather conditions Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTOFA38406 |
|
Frequency Range |
380~400MHz |
|
Gain |
6.5dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
30±3º |
|
Ovality |
≤2dB |
|
VSWR |
≤2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
200W |
|
Connector |
N-Female |
|
Lightning protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
¢51x3200mm |
|
Weight |
3.2Kg(Without kits) |
|
Rated Wind Velocity |
36.9m/s |
|
Operational humidity |
< 95％ |
|
Radome color |
White |
|
Operating temperature |
- 40～55℃ |
