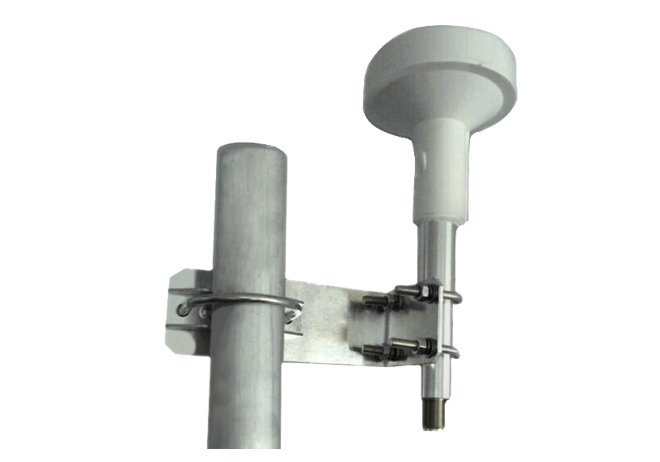

Outdoor GPS marine antenna Supporting 1575.42MHz Working with all weather condition Good durable performance
|
Electrical Specifications |
|
|
Model |
MNTTAGPSM01 |
|
Frequency Range |
1575.42MHz |
|
Gain |
38±2dBi |
|
Horizontal Beamwidth |
110±10º |
|
Vertical Beamwidth |
80±5º |
|
VSWR |
≤2.0 |
|
Impedance |
50 Ω |
|
Polarization |
RHCP |
|
Max.Power |
100W |
|
Connector |
N-female(with 2m cable) |
|
Lighting protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimension |
￠95*360mm |
|
Weight |
0.32kg |
|
Rated Wind Velocity |
36.9m/s |
|
Amplifier Supply Voltage |
4~6 V |
|
Operational Humidity |
< 95％ |
|
Radome Color |
White |
|
Radome material |
ABS |
|
Amplifier Supply Electricity |
≤45mA |
|
Operating temperature |
-40～55º |
|
Suitable Pole Diameter |
￠30～￠55mm |
