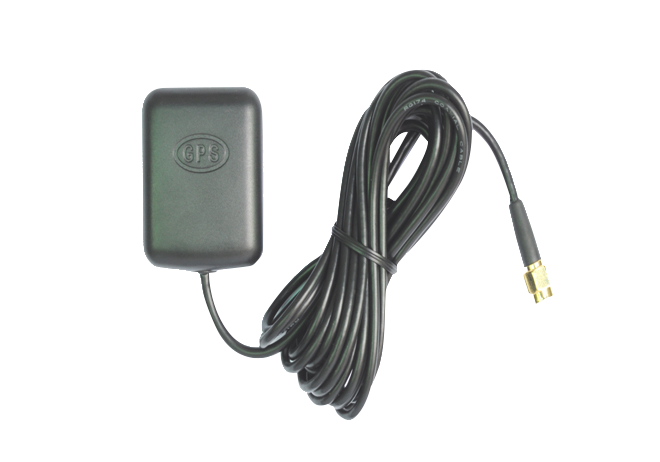

Supporting 1575.42MHz With LNA With magnetic base Good durable performance
|
Electrical Specification |
|
|
Model |
MNTGPS01 |
|
Freq Range |
1575±3MHZ |
|
VSWR |
≤1.4 |
|
Impedance |
50 Ω |
|
Polarization |
RHCP |
|
LNA Specification |
First grade and second grade |
|
LNA Gain(Without cable) |
32dBi |
|
Noise Figure |
≤1.3dB |
|
DC Voltage |
3.0±0.3VDC；5.0±0.5VDC 3.3±0.3VDC |
|
DC current |
≤20mA |
|
Interference suppression |
20dB(f0±140MHz) |
|
Mechanical Specification |
|
|
Dimension |
46*38*14mm |
|
Weight |
0.23Kg |
|
Cable |
10m |
|
Connector |
SMA/BNC |
|
Mounting way |
Magnetic |
|
Radome color |
Black |
|
Environmental Specification |
|
|
Working Temp |
-40℃~+85℃ |
|
Storage Temp |
-40℃~+90℃ |
|
Vibration Sine sweep |
1g(0-p) 10~50~10Hz each ax |
|
Waterproof IP 66 M |
GB 4208-84 |
