  • Big outdoor panel antenna 12dBi

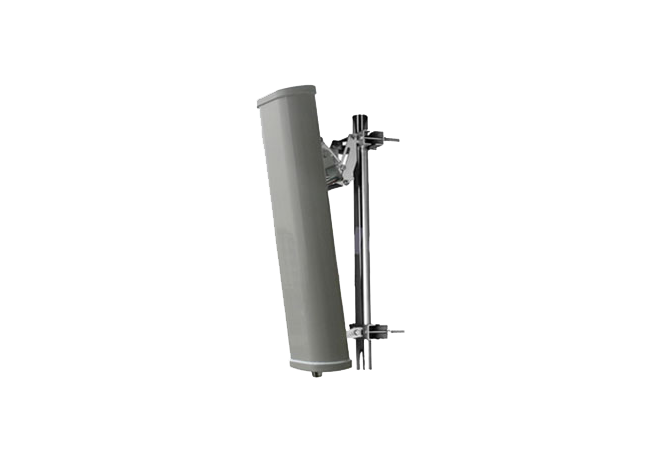

Big outdoor panel antenna 12dBi
Supporting 824~2500MHz
With PVC radome with UV-resistant perforance
Working with all weather conditions
Good durable performance
Product Description

Electrical   Specifications

Model

MNTBOPA82425G1201

Frequency Range

824-960MHz

  1710-2500MHz

Gain

12±0.5dBi

        12.5±1dBi

Horizontal Beamwidth

65±5º

Vertical Beamwidth

30±3º

20±3º

F/B Ratio

≥25dB

VSWR

≤1.5

Impedance

50 Ω

Polarization

                          Vertical

Max.Power

100W

Connector

N-female

Lightning Protection

DC Ground

Mechanical   Specifications

Dimension

600x275x75 mm

Weight

3.2kg

Rated Wind Velocity

36.9 m/s

Reflector material

Aluminum

Operational Humidity

< 95

Radome Color

Grey white

Radome material

       PVC

Operating temperature

-4055

Suitable pole diameter

40~¢80
