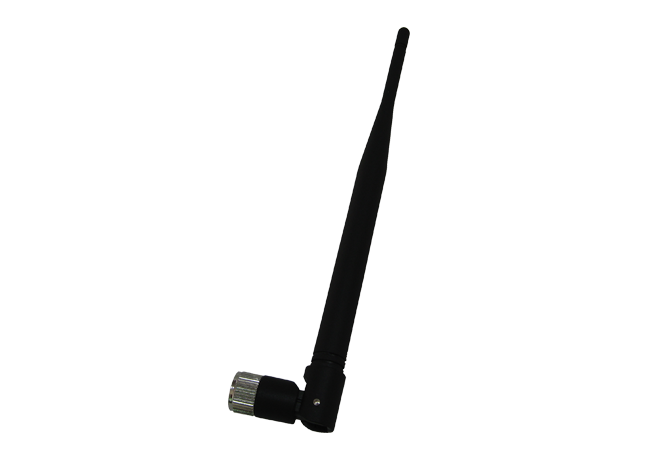

With gain of 3dBi With elegant ABS radome Working with all weather conditions Good durable performance
|
Electrical Specification |
|
|
Model No. |
MNTRA91501 |
|
Frequency Range |
915MHz |
|
Gain |
3dBi |
|
Horizontal Beamwidth |
360º |
|
Vertical Beamwidth |
60±15º |
|
VSWR |
≦2 |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Max.Power |
50W |
|
Connector |
RP-SMA-male |
|
Lightning protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
195x21.5x13mm |
|
Weight |
25g |
|
Operational humidity |
< 95％ |
|
Radiating material |
Copper |
|
Radome color |
Black |
|
Radome material |
ABS |
|
Operating temperature |
- 40～55℃ |
