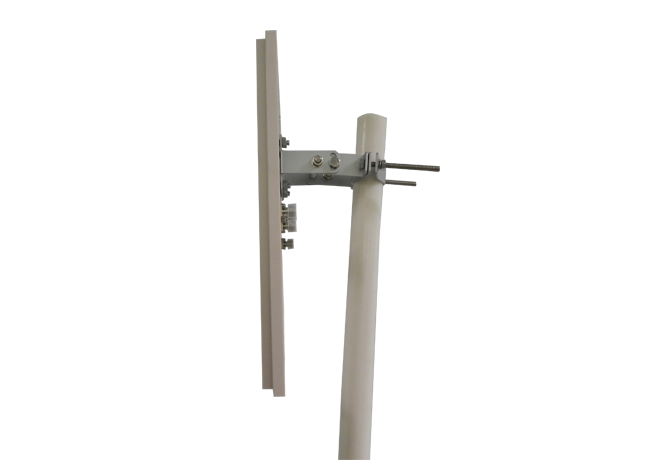

With the gain of 18dBi With 4 ports ABS radome with UV-resistant performance Good durable performance
|
Electrical Specification |
|
|
Model |
MNTOPA518M401 |
|
Frequency range |
5150-5850MHz |
|
Gain |
4x18±0.5dBi |
|
Horizontal Beamwidth |
22±3º |
|
Vertical Beamwidth |
23±3º |
|
F/B Ratio |
≥28dB |
|
Isolation |
≥28dB |
|
VSWR |
≤2 |
|
Impedance |
50 Ω |
|
Polarization |
Vertical+Horizontal |
|
Max.Power |
100W |
|
Connector |
4xN-female |
|
Lightning Protection |
DC Ground |
|
Mechanical Specification |
|
|
Dimension |
450x200x25mm |
|
Weight |
1.9kg |
|
Rated Wind Velocity |
36.9m/s |
|
Reflector material |
Aluminum |
|
Operational Humidity |
< 95％ |
|
Radome Color |
White |
|
Radome material |
ABS |
|
Operating temperature |
40～55º |
|
Suitable pole diameter |
￠40～￠55mm |
