  • Small LPDA antenna  Model No: MNTSLPDA01

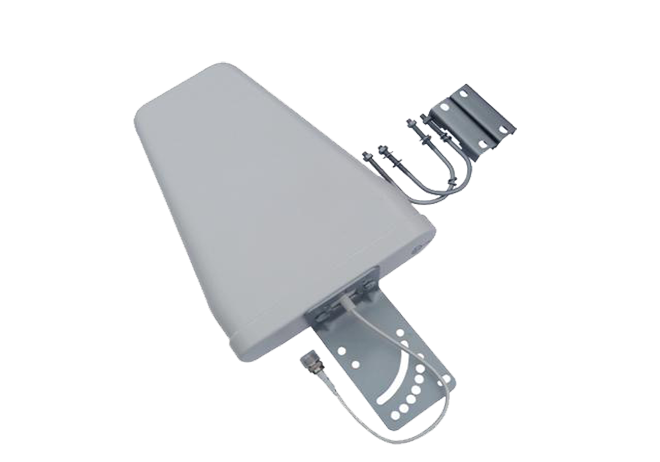

Small LPDA antenna Model No: MNTSLPDA01
* Small LPDA antenna for mobile signal booster
* Supporting Wide band of 2G/3G/4G together
* With UV-resistant radome
* Working with all weather condition
* Easy installation
Product Description

Electrical Specifications

Model No.

MNTSLPDA01

Frequency range

698-960/1710-2500MHz

Gain

9±0.5dBi

Horizontal Beamwidth

90±5 º

Vertical Beamwidth

                       70±3º

F/B Ratio

≥20dB

VSWR

≤1.5

Impedance

50Ω

Polarization

                       Vertical

Max. Power

100W

Connector

 N-female

Lightning   Protection

 DC Ground

Mechanical Specifications

Dimension

295*205*65mm

Weight

0.75kg

Rated Wind Velocity

36.9m/s

Reflector material

Aluminum

Operational Humidity

< 95

Radome Color

White

Radome material

ABS

Operating temperature

4055 º

Suitable pole diameter


40~¢55mm
